Profilverbinder horizontal

Art.Nr. 6288102 | EAN 4012195147169

Produktbeschreibung

Produktbeschreibung

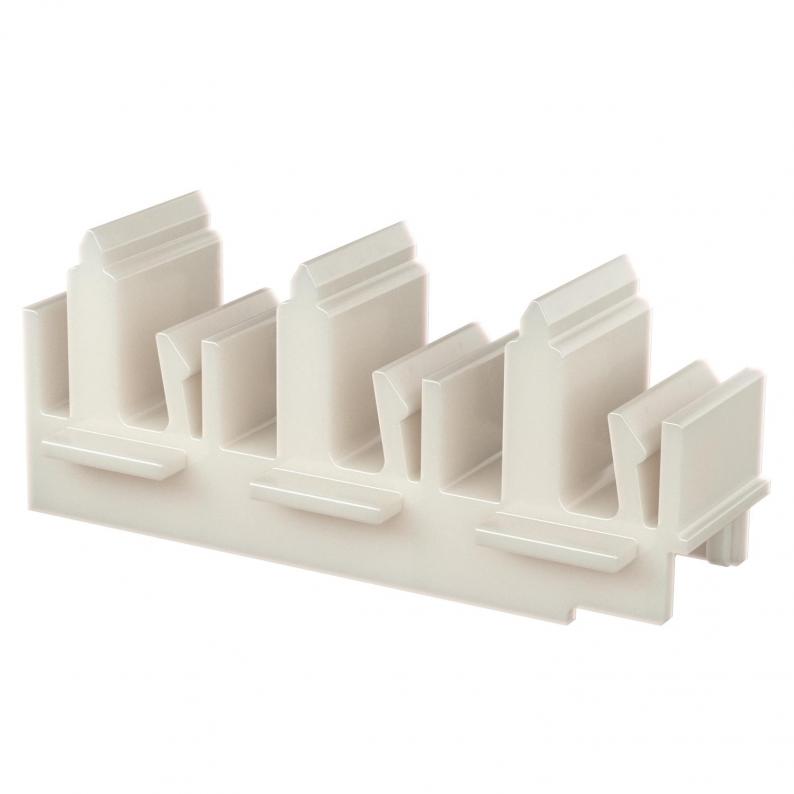

Profilverbinder horizontal mit Führungsschlitzen zum Einrasten von Konvektionsgitterprofilen. Der Profilverbinder wird mit dem Spannbügel Typ SP3 auf der Befestigungskonsole montiert.Die Gitterlamellen werden einfach nur auf die Lamellenhalter aufgesteckt.
  • Communautés Européennes, EG Konformitätserklärung nach EG-Richtlinien
  • UKCA Konformitätserklärung
Technische Daten

Technische Daten

Anzahl Profile 3
Dimension 20x32x75
Einbaulage horizontal
Farbe natur
Halogenfrei ja
Transparent nein
Werkstoff Polypropylen

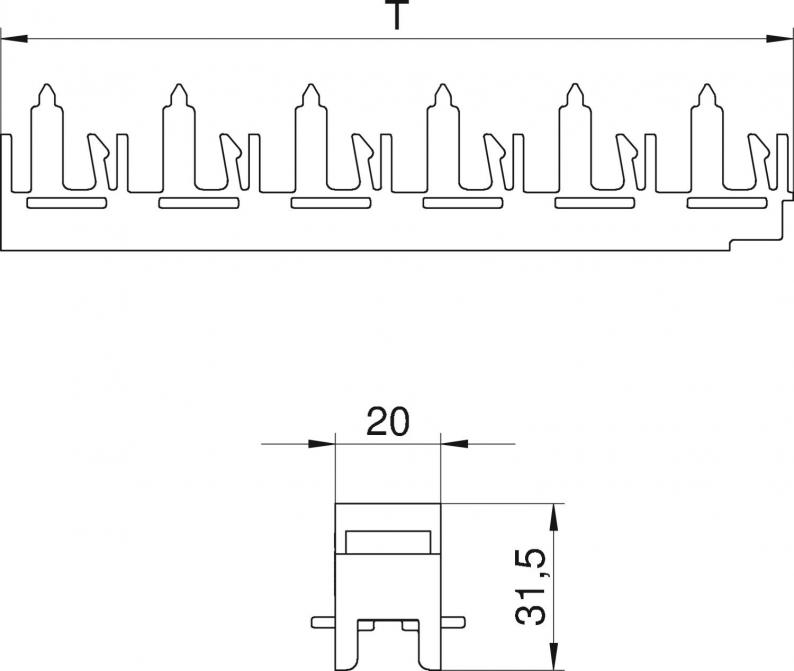

Abmessungen

Breite 20 mm
Höhe 31,5 mm
Länge 75 mm
Alle Typen

Alle Typen

Typ Länge Anzahl Profile Art.Nr. Menge kl. VKE Listenpreis exkl. MwSt.
PV N3 50H 50 mm 2 6288100
1 Stück 4,50 € Preis / 1 Stück
PV N3 75H 75 mm 3 6288102
1 Stück 5,05 € Preis / 1 Stück
PV N3 100H 100 mm 4 6288104
1 Stück 5,55 € Preis / 1 Stück
PV N3 125H 125 mm 5 6288106
1 Stück 6,40 € Preis / 1 Stück
PV N3 150H 150 mm 6 6288108
1 Stück 6,75 € Preis / 1 Stück
PV N3 175H 175 mm 7 6288110
1 Stück 7,25 € Preis / 1 Stück
PV N3 200H 200 mm 8 6288112
1 Stück 7,25 € Preis / 1 Stück
PV N3 225H 225 mm 9 6288114
1 Stück 7,55 € Preis / 1 Stück
PV N3 250H 250 mm 10 6288116
1 Stück 7,55 € Preis / 1 Stück
PV N3 275H 275 mm 11 6288118
1 Stück 8,20 € Preis / 1 Stück
PV N3 300H 300 mm 12 6288120
1 Stück 8,20 € Preis / 1 Stück
